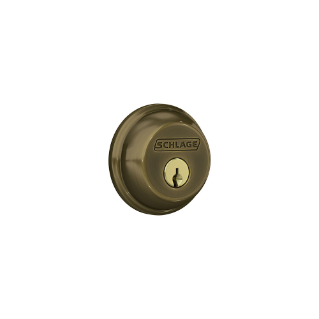

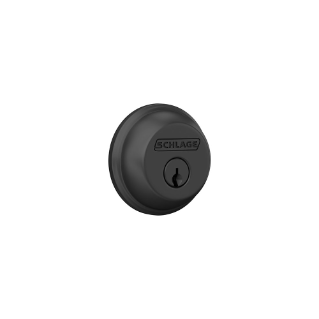

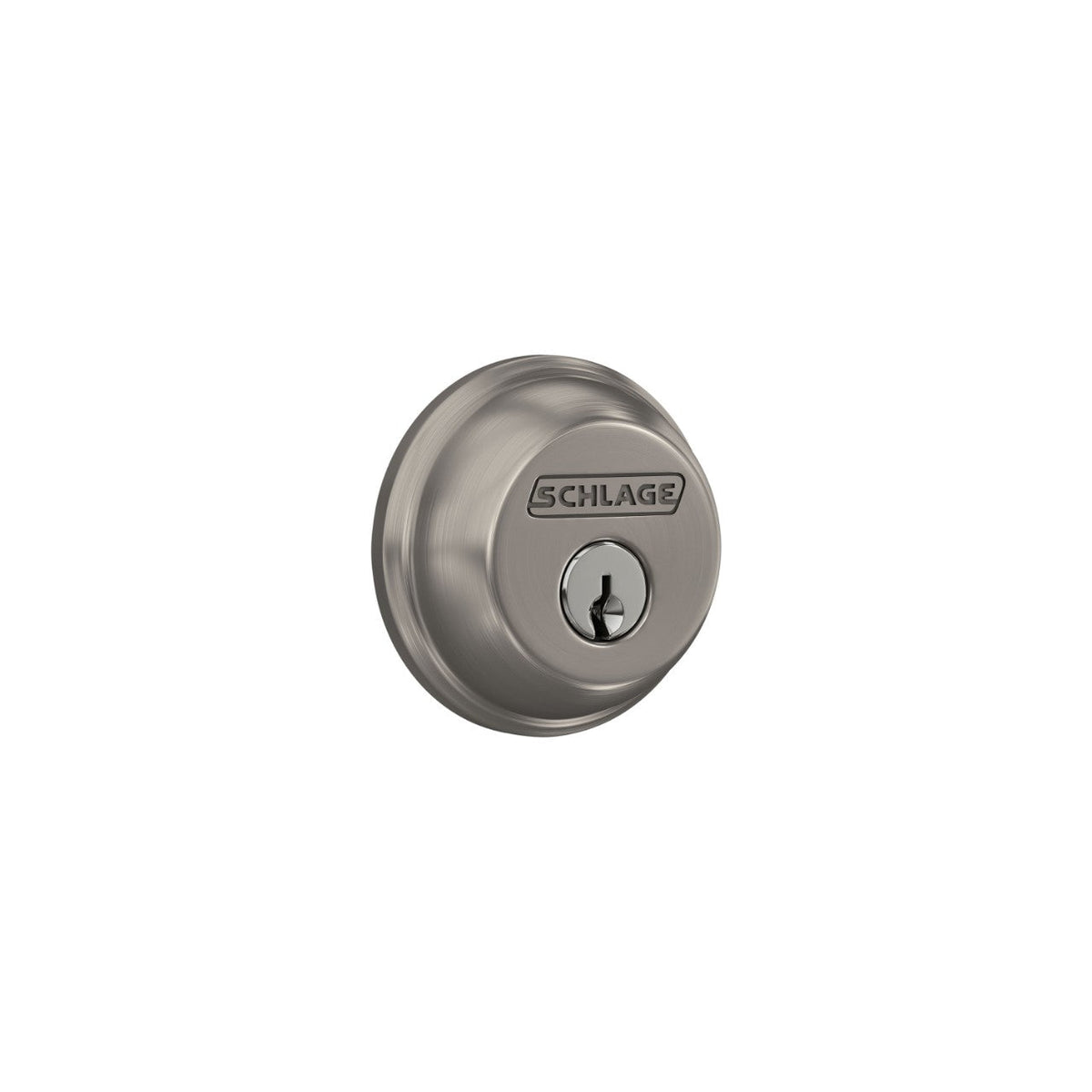

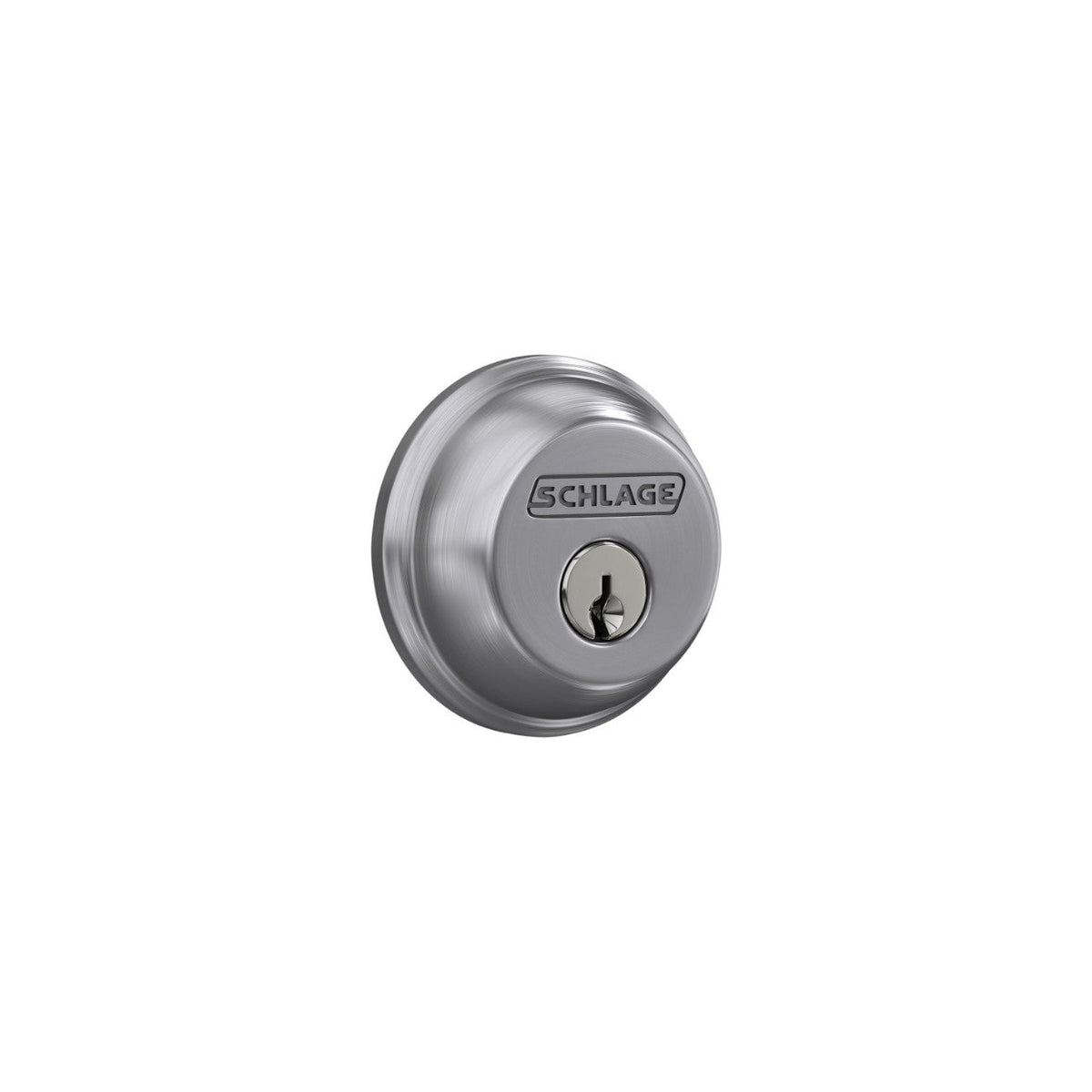

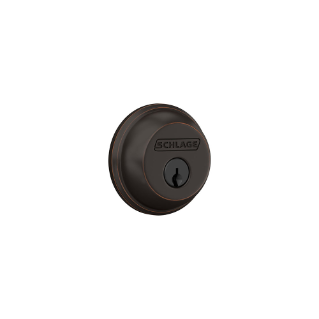

Schlage Single Cylinder Deadbolt

FEATURES

• Use with 1-3/8 in. to 1-3/4 in. door
• Universal deadbolt fits 2-3/8 in. or 2-3/4 in. backset
• Guaranteed to fit on existing, standard pre-drilled doors
• For more than 95 years, Schlage has offered durable door hardware in a range of unique style combinations to express any personality
• Deadbolt thrown or retracted by key from outside or by inside turn unit
• Bolt automatically deadlocks when fully thrown
• Lifetime finish and mechanical guarantee (Oil-Rubbed Bronze is only a mechanical guarantee)
• Easy installation with Phillips screwdriver
• Unique Snap & Stay design holds deadbolt in place while tightening screws
• Universal latches slide easily into place and require no tools or manual adjustments
• Highest industry ratings for residential security, durability, and finish
• Pick and bump resistant
• Certified Commercial Grade 1
• Graded Best in Residential Security, Durability, and Finish

SPECIFICATIONS

• Applications: Residential single- and multi-family doors
• Backset: Universal deadbolts fit 2-3/8 or 2-3/4 backset
• Certifications:
• Commercial Standard Certification:ANSI/BHMA A156.36-2010 Grade 1
• Residential Standard Certification:ANSI/BHMA A156.40-2015 Grade AAA in Security, Durability and Finish
• Door thickness range: 1-3/8" (35 mm) to 1-3/4" (44 mm)
• Keying: 5-pin tumbler C keyway standard, with two brass keys. 6-pin cylinder available
• UL Listed: Locks for up to three-hour fire doors available
• Warranty: Limited Lifetime Mechanical and Finish Warranty
